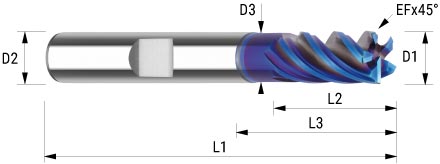

| Produktbezeichnung (Variante) | D1 | D2 | D3 | L1 | L2 | L3 | Z | Eckfase | NL | Schaft | L4 | Materialeignung | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GHI.060.00 | 6 | 6 | 5.5 | 57 | 13 | 21 | 4 | 0.2 | 15.1 | HA | 13 |
|
M20048846 | |
| GHI.060.10 | 6 | 6 | 5.5 | 57 | 13 | 21 | 4 | 0.2 | 15.1 | HB | 13 |
|
M20048847 | |
| GHI.080.00 | 8 | 8 | 7.5 | 63 | 19 | 27 | 5 | 0.2 | 21 | HA | 19 |
|
M20048848 | |
| GHI.080.10 | 8 | 8 | 7.5 | 63 | 19 | 27 | 5 | 0.2 | 21 | HB | 19 |
|
M20048849 | |
| GHI.100.00 | 10 | 10 | 9.5 | 72 | 22 | 32 | 5 | 0.3 | 24.3 | HA | 22 |
|
M20048850 | |
| GHI.100.10 | 10 | 10 | 9.5 | 72 | 22 | 32 | 5 | 0.3 | 24.3 | HB | 22 |
|
M20048851 | |
| GHI.120.00 | 12 | 12 | 11.5 | 83 | 26 | 38 | 5 | 0.3 | 28.2 | HA | 26 |
|
M20048852 | |
| GHI.120.10 | 12 | 12 | 11.5 | 83 | 26 | 38 | 5 | 0.3 | 28.2 | HB | 26 |
|
M20048853 | |
| GHI.160.00 | 16 | 16 | 15.5 | 92 | 32 | 44 | 5 | 0.4 | 37.4 | HA | 32 |
|
M20048854 | |
| GHI.160.10 | 16 | 16 | 15.5 | 92 | 32 | 44 | 5 | 0.4 | 37.4 | HB | 32 |
|
M20048855 | |
| GHI.200.00 | 20 | 20 | 19.5 | 104 | 38 | 54 | 5 | 0.5 | 41.4 | HA | 38 |
|
M20048856 | |
| GHI.200.10 | 20 | 20 | 19.5 | 104 | 38 | 54 | 5 | 0.5 | 41.4 | HB | 38 |
|
M20048857 |
