GND grooving system, square shank (modular tool)
Loading...
Loading...
Request product
Product information
- Square shank holder with direct IK transfer, standard 3 grooving depths and 9 grooving widths (1.25mm - 8.00mm)
- Square shank holder 1616, 2020, 2525 with changeable tool cassette K20
- Square shank holder internal cooling (IK)
- Tool cassette with internal cooling from above and below (from a grooving width of 2 mm)
- Optimized chip formation and wear behaviour due to internal cooling
- Standard 1616 and 2020 square shank holders with large groove depth
- PSK basic holder system with interchangeable tool cassette
- Tempered base holder for a long service life
- Square shank holder 1616, 2020, 2525 with changeable tool cassette K20
- Square shank holder internal cooling (IK)
- Tool cassette with internal cooling from above and below (from a grooving width of 2 mm)
- Optimized chip formation and wear behaviour due to internal cooling
- Standard 1616 and 2020 square shank holders with large groove depth
- PSK basic holder system with interchangeable tool cassette
- Tempered base holder for a long service life
Variants

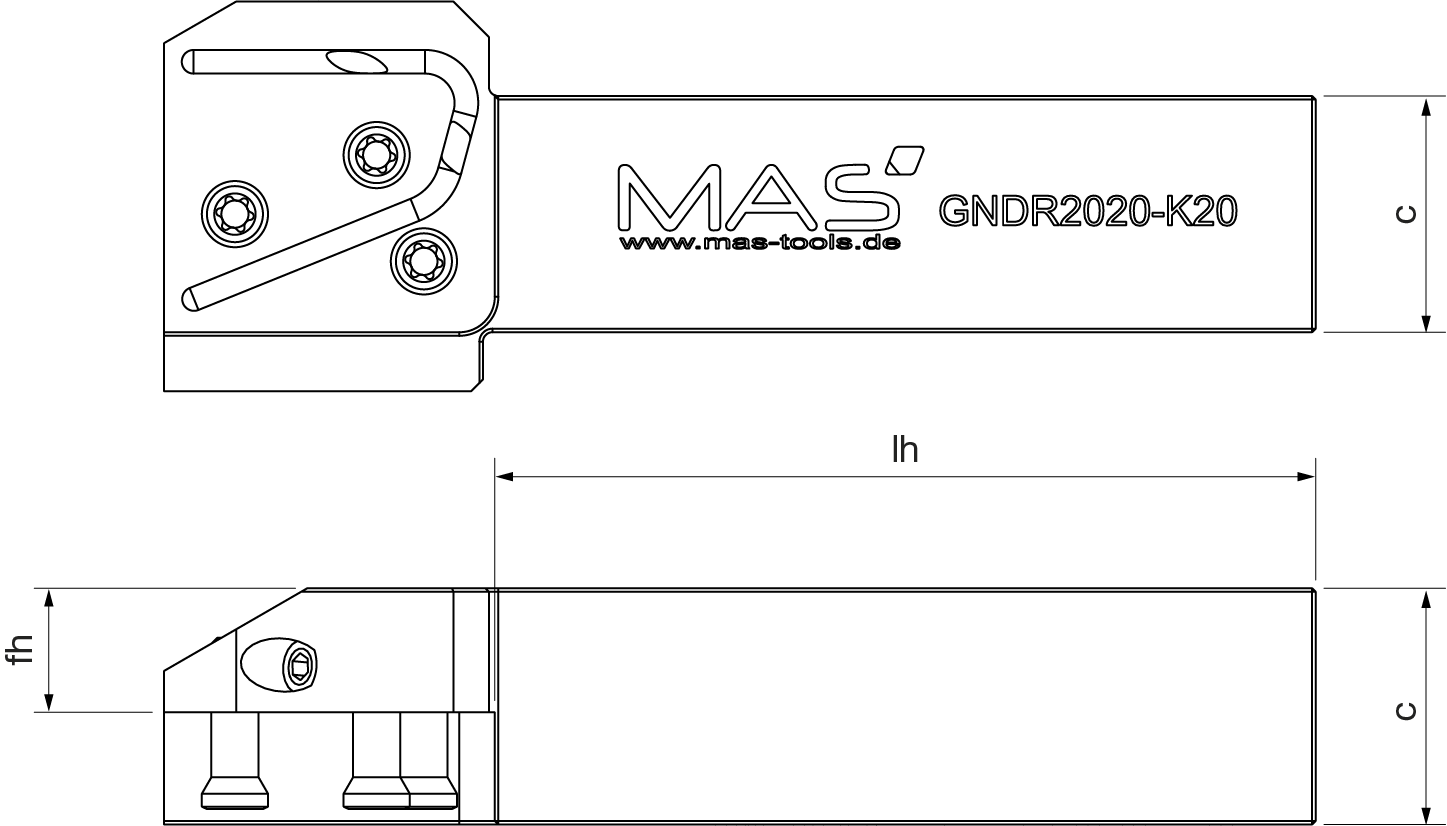

| product name | tool side interface | machine side interface | Shank height h/c (in mm) | Shank width b/c (in mm) | fh | LH | IK connection thread | Voltage | IK (with Internal cooling) | IK from | Stopper | Clamping screw | Tightening torque (in Nm) | required key | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GNDR2525-K20 | K20 | Quadratschaft | 25 | 25 | 111.5 | 15.5 | G1/8 | 3x Schraube | ja | hinten/unten | G1/8 Typ596 | BFTX0414 | 3 | Torx 15 | E00000968 | |
| GNDL2525-K20 | K20 | Quadratschaft | 25 | 25 | 111.5 | 15.5 | G1/8 | 3x Schraube | ja | hinten/unten | G1/8 Typ596 | BFTX0414 | 3 | Torx 15 | E00001626 | |
| GNDR2525F-K20 | K20 | Quadratschaft | 25 | 25 | 122 | 5 | G1/8 | 3x Schraube | ja | hinten/unten | G1/8 Typ596 | BFTX0414 | 3 | Torx 15 | E00001663 | |
| GNDL2525F-K20 | K20 | Quadratschaft | 25 | 25 | 122 | 5 | G1/8 | 3x Schraube | ja | hinten/unten | G1/8 Typ596 | BFTX0414 | 3 | Torx 15 | E00001981 | |
| GNDR2020-K20 | K20 | Quadratschaft | 20 | 20 | 70 | 10.5 | G1/8 | 3x Schraube | ja | hinten/unten | G1/8 Typ596 | BFTX0414 | 3 | Torx 15 | E00006033 | |
| GNDL2020-K20 | K20 | Quadratschaft | 20 | 20 | 70 | 10.5 | G1/8 | 3x Schraube | ja | hinten/unten | G1/8 Typ596 | BFTX0414 | 3 | Torx 15 | E00006037 | |
| GNDR2020F-K20 | K20 | Quadratschaft | 20 | 20 | 70 | 5 | G1/8 | 3x Schraube | ja | hinten/unten | G1/8 Typ596 | BFTX0414 | 3 | Torx 15 | E00006050 | |
| GNDL2020F-K20 | K20 | Quadratschaft | 20 | 20 | 70 | 5 | G1/8 | 3x Schraube | ja | hinten/unten | G1/8 Typ596 | BFTX0414 | 3 | Torx 15 | E00006051 | |
| GNDR1616-K20 | K20 | Quadratschaft | 16 | 16 | 69.5 | 6.5 | G1/8 | 3x Schraube | ja | hinten/unten/seitlich | G1/8 Typ596 | BFTX0414 | 3 | Torx 15 | E00021558 | |
| GNDL1616-K20 | K20 | Quadratschaft | 16 | 16 | 69.5 | 6.5 | G1/8 | 3x Schraube | ja | hinten/unten/seitlich | G1/8 Typ596 | BFTX0414 | 3 | Torx 15 | E00021559 |
