MAS Solid carbide dynamic milling cutter TSC
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for normal materials - Typ N
- Flutes 5
- Front form chamfer
- Helix angle 40°
- unequal division
- Shank design HB
- Works standard
- Coating VAROCON
- Trochoidal speed cutting TSC
- For Inconel / titanium alloy
- Cooling with cutting fluid
- High Performance
- Machining direction xy(z)
- Trochoidal milling
- Side milling
- Finishing
- Flutes 5
- Front form chamfer
- Helix angle 40°
- unequal division
- Shank design HB
- Works standard
- Coating VAROCON
- Trochoidal speed cutting TSC
- For Inconel / titanium alloy
- Cooling with cutting fluid
- High Performance
- Machining direction xy(z)
- Trochoidal milling
- Side milling
- Finishing
Variants

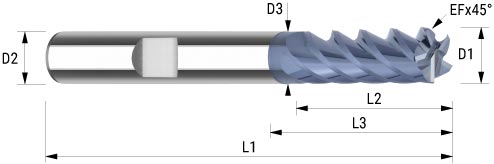

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | Corner chamfer | NL | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EIC.060.10 | 6 | 6 | 5.8 | 62 | 18 | 25 | 5 | 0.1 | 22 | HB | 18 |
|
M20048341 | |
| EIC.080.10 | 8 | 8 | 7.8 | 68 | 24 | 30 | 5 | 0.15 | 28.5 | HB | 24 |
|
M20048342 | |
| EIC.100.10 | 10 | 10 | 9.8 | 80 | 30 | 35 | 5 | 0.2 | 35.5 | HB | 30 |
|
M20048343 | |
| EIC.120.10 | 12 | 12 | 11.8 | 93 | 36 | 45 | 5 | 0.2 | 41.5 | HB | 36 |
|
M20048344 | |
| EIC.160.10 | 16 | 16 | 15.8 | 108 | 48 | 55 | 5 | 0.3 | 53.5 | HB | 48 |
|
M20048345 | |
| EIC.200.10 | 20 | 20 | 19.8 | 126 | 60 | 70 | 5 | 0.4 | 66 | HB | 60 |
|
M20048346 |
