MAS Solid carbide dynamic milling cutter TSC 2xD
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for materials normal to hard - Typ N-H
- Flutes 7
- Front form chamfer
- Helix angle 40°
- unequal division
- Shank design HA
- Works standard
- Coating VAROCON PLUS
- Trochoidal speed cutting TSC
- For steel
- For cast iron
- For rost and acid constant steel
- High Performance
- 1st Choice
- Machining direction xy(z)
- Trochoidal milling
- Finishing
- Flutes 7
- Front form chamfer
- Helix angle 40°
- unequal division
- Shank design HA
- Works standard
- Coating VAROCON PLUS
- Trochoidal speed cutting TSC
- For steel
- For cast iron
- For rost and acid constant steel
- High Performance
- 1st Choice
- Machining direction xy(z)
- Trochoidal milling
- Finishing
Variants

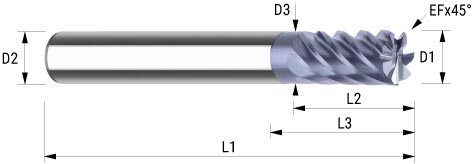

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | Corner chamfer | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EIG.060.00 | 6 | 6 | 5.8 | 57 | 13 | 19 | 7 | 0.12 | HA | 13 |
|
M20062239 | |
| EIG.080.00 | 8 | 8 | 7.8 | 63 | 19 | 25 | 7 | 0.16 | HA | 19 |
|
M20062240 | |
| EIG.100.00 | 10 | 10 | 9.8 | 72 | 22 | 30 | 7 | 0.2 | HA | 22 |
|
M20062241 | |
| EIG.120.00 | 12 | 12 | 11.8 | 83 | 26 | 36 | 7 | 0.24 | HA | 26 |
|
M20062242 | |
| EIG.160.00 | 16 | 16 | 15.8 | 92 | 32 | 42 | 7 | 0.32 | HA | 32 |
|
M20062243 | |
| EIG.200.00 | 20 | 20 | 19.8 | 104 | 41 | 52 | 7 | 0.4 | HA | 41 |
|
M20062244 |
