MAS Solid carbide end mill HPC 3xD

MAS Solid carbide end mill HPC 3xD

Main Image Article MAS Solid carbide end mill HPC 3xD
Main Image Article MAS Solid carbide end mill HPC 3xD

Do you have any questions about the product?

You can reach us Mon-Thu between 7:30-16:45 and Friday between 07:30-14:30
Phone: +49 7152-6065-12
Request product

Downloads to the product

MAS VHM-Tools Cutting Data

Product information

- New article
- Geometry for materials normal to hard - Typ N-H
- flutes 4
- Front form chamfer
- Helix angle 35°/38°
- unequal division
- Shank design HA
- Shank design HB
- Works standard
- Length of design - long
- Coating VAROCON PLUS
- High Performance Cutting HPC
- For steel
- For cast iron
- High Performance
- 1st Choice
- Machining direction xyz
- Side milling

Variants

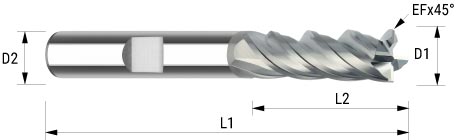

product name D1 D2 L1 L2 Z Corner chamfer NL shank L4 Suitability of material ART.-NR:
BCE.060.00 6 6 62 22 4 0.13 24.5 HA 22
material steel
material cast iron
M20077916
BCE.060.10 6 6 62 22 4 0.13 24.5 HB 22
material steel
material cast iron
M20077917
BCE.080.00 8 8 68 28 4 0.15 31 HA 28
material steel
material cast iron
M20077918
BCE.080.10 8 8 68 28 4 0.15 31 HB 28
material steel
material cast iron
M20077919
BCE.100.00 10 10 80 33 4 0.2 36.5 HA 33
material steel
material cast iron
M20077920
BCE.100.10 10 10 80 33 4 0.2 36.5 HB 33
material steel
material cast iron
M20077921
BCE.120.00 12 12 93 42 4 0.25 46.5 HA 42
material steel
material cast iron
M20077922
BCE.120.10 12 12 93 42 4 0.25 46.5 HB 42
material steel
material cast iron
M20077923
BCE.160.00 16 16 108 53 4 0.35 58.5 HA 53
material steel
material cast iron
M20077924
BCE.160.10 16 16 108 53 4 0.35 58.5 HB 53
material steel
material cast iron
M20077925
BCE.200.00 20 20 126 68 4 0.4 74 HA 68
material steel
material cast iron
M20077926
BCE.200.10 20 20 126 68 4 0.4 74 HB 68
material steel
material cast iron
M20077927
