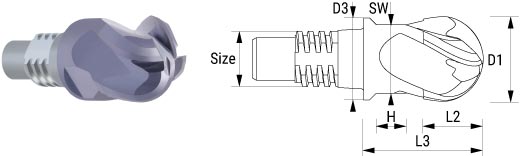

MAS solid carbide full radius milling cutter
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for materials normal to hard - Typ N-H
- flutes 4
- Front form ballnose
- Helix angle 30°
- Shank design INOSCREW
- Coating TIALN
- High Speed Cutting HSC
- For universal processing
- High Performance
- Machining direction xyz
- For Profiling
- flutes 4
- Front form ballnose
- Helix angle 30°
- Shank design INOSCREW
- Coating TIALN
- High Speed Cutting HSC
- For universal processing
- High Performance
- Machining direction xyz
- For Profiling
Variants
| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | size | R | SWxSB | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CH.E14.100 | 10 | 5 | 9.6 | 27 | 7 | 14 | 4 | 20 | 5 | 8x3 | SAV | 7 |
|
M20055261 | |
| CH.E14.120 | 12 | 6 | 11.6 | 32.5 | 9 | 17 | 4 | 30 | 6 | 10x4 | SAV | 9 |
|
M20055262 | |
| CH.E14.160 | 16 | 8 | 15.4 | 41 | 12 | 21 | 4 | 40 | 8 | 13x4 | SAV | 12 |
|
M20055263 | |
| CH.E14.200 | 20 | 10 | 19.2 | 50 | 15 | 26 | 4 | 50 | 10 | 16x5 | SAV | 15 |
|
M20055264 |
