MAS Solid carbide roughing end mill type NR with IK
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for hard materials - Typ H
- flutes 4
- Front form frontal radius
- Helix angle 15°
- Shank design HA
- Works standard
- Coating ALTIN
- High Speed Cutting HSC
- For hardened steel 45-65HRC
- For steel
- Compressed-air processing
- High Performance
- 1st Choice
- Machining direction xyz
- For Profiling
- flutes 4
- Front form frontal radius
- Helix angle 15°
- Shank design HA
- Works standard
- Coating ALTIN
- High Speed Cutting HSC
- For hardened steel 45-65HRC
- For steel
- Compressed-air processing
- High Performance
- 1st Choice
- Machining direction xyz
- For Profiling
Variants

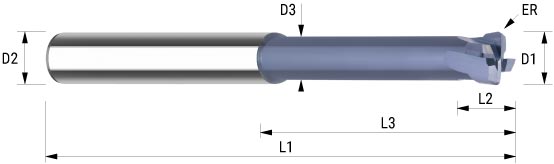

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | RA | R | NL | Ertheor | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CCG.040.00 | 4 | 6 | 3.4 | 80 | 1.5 | 40 | 4 | 0.32 | 6 | 4.5 | 4 | HA | 1.5 |
|
M20046350 | |
| CCG.050.00 | 5 | 6 | 4.2 | 80 | 2 | 40 | 4 | 0.4 | 7.5 | 5.3 | 5 | HA | 2 |
|
M20046351 | |
| CCG.060.00 | 6 | 6 | 5 | 80 | 2.5 | 45 | 4 | 0.5 | 9 | 8.5 | 6 | HA | 2.5 |
|
M20046352 | |
| CCG.080.00 | 8 | 8 | 6.7 | 90 | 3 | 55 | 4 | 0.65 | 12 | 8.2 | 8 | HA | 3 |
|
M20046353 | |
| CCG.100.00 | 10 | 10 | 8.7 | 100 | 4 | 60 | 4 | 0.8 | 15 | 10.5 | 1 | HA | 4 |
|
M20046354 | |
| CCG.120.00 | 12 | 12 | 10 | 110 | 5 | 65 | 4 | 1 | 18 | 15.6 | 12 | HA | 5 |
|
M20046355 | |
| CCG.160.00 | 16 | 16 | 13.5 | 130 | 6 | 80 | 4 | 1.3 | 24 | 16.9 | 16 | HA | 6 |
|
M20046356 | |
| CCG.200.00 | 20 | 20 | 17 | 150 | 8 | 95 | 4 | 1.65 | 30 | 20.3 | 2 | HA | 8 |
|
M20046357 |
