MAS solid carbide ball nose end mill
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for hard materials - Typ H
- Flutes 2
- Front form ballnose
- Helix angle 15°
- Shank design HA
- Works standard
- Coating ALTIN
- High Speed Cutting HSC
- For hardened steel 45-65HRC
- For steel
- For cast iron
- Compressed-air processing
- High Performance
- Machining direction xyz
- For Profiling
- Flutes 2
- Front form ballnose
- Helix angle 15°
- Shank design HA
- Works standard
- Coating ALTIN
- High Speed Cutting HSC
- For hardened steel 45-65HRC
- For steel
- For cast iron
- Compressed-air processing
- High Performance
- Machining direction xyz
- For Profiling
Variants

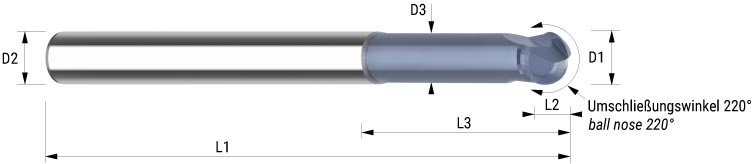

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | R | NL | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FGA.010.00 | 1 | 6 | 0.9 | 80 | 0.72 | 5 | 2 | 0.5 | 1.7 | HA | 0.72 |
|
M20048602 | |
| FGA.020.00 | 2 | 6 | 1.8 | 80 | 1.44 | 10 | 2 | 1 | 3.3 | HA | 1.44 |
|
M20048603 | |
| FGA.030.00 | 3 | 6 | 2.8 | 80 | 2.04 | 15 | 2 | 1.5 | 5 | HA | 2.04 |
|
M20048604 | |
| FGA.040.00 | 4 | 6 | 3.8 | 80 | 2.62 | 20 | 2 | 2 | 6.6 | HA | 2.62 |
|
M20048605 | |
| FGA.050.00 | 5 | 6 | 4.7 | 90 | 3.35 | 25 | 2 | 2.5 | 8.3 | HA | 3.35 |
|
M20048606 | |
| FGA.060.00 | 6 | 6 | 5.7 | 100 | 3.94 | 30 | 2 | 3 | 9.9 | HA | 3.94 |
|
M20048607 | |
| FGA.060.44 | 6 | 6 | 5.7 | 70 | 3.94 | 30 | 2 | 3 | 9.9 | HA | 3.94 |
|
M20048608 | |
| FGA.080.00 | 8 | 8 | 7.5 | 100 | 5.39 | 40 | 2 | 4 | 13.2 | HA | 5.39 |
|
M20048609 | |
| FGA.100.00 | 10 | 10 | 9.4 | 120 | 6.71 | 50 | 2 | 5 | 16.5 | HA | 6.71 |
|
M20048610 | |
| FGA.120.00 | 12 | 12 | 11.2 | 120 | 8.15 | 50 | 2 | 6 | 19.8 | HA | 8.15 |
|
M20048611 | |
| FGA.160.00 | 16 | 16 | 15 | 150 | 10.78 | 60 | 2 | 8 | 26.4 | HA | 10.78 |
|
M20048612 |
