MAS Solid carbide dynamic end mill TSC

MAS Solid carbide dynamic end mill TSC

Main Image Article MAS Solid carbide dynamic end mill TSC
Main Image Article MAS Solid carbide dynamic end mill TSC

Do you have any questions about the product?

You can reach us Mon-Thu between 7:30-16:45 and Friday between 07:30-14:30
Phone: +49 7152-6065-12
Request product

Downloads to the product

MAS VHM-Tools Cutting Data

Product information

- Geometry for materials normal to hard - Typ N-H
- Flutes 5
- Front form chamfer
- Helix angle 40°
- unequal division
- Chip breaker - Typ HF
- Shank design HA
- Shank design HB
- Works standard
- Coating VAROCON
- Trochoidal speed cutting TSC
- For steel
- For cast iron
- High Performance
- Machining direction xy(z)
- Trochoidal milling
- Side milling
- Finishing

Variants

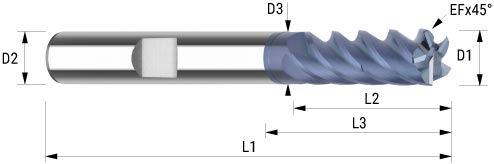

product name D1 D2 D3 L1 L2 L3 Z Corner chamfer NL shank L4 Suitability of material ART.-NR:
EIA.060.00 6 6 5.8 62 18 25 5 0.1 21 HA 18
material steel
material cast iron
M20048317
EIA.060.10 6 6 5.8 62 18 25 5 0.1 21 HB 18
material steel
material cast iron
M20048318
EIA.080.00 8 8 7.8 68 24 30 5 0.15 28 HA 24
material steel
material cast iron
M20048319
EIA.080.10 8 8 7.8 68 24 30 5 0.15 28 HB 24
material steel
material cast iron
M20048320
EIA.100.00 10 10 9.8 80 30 35 5 0.2 34 HA 30
material steel
material cast iron
M20048321
EIA.100.10 10 10 9.8 80 30 35 5 0.2 34 HB 30
material steel
material cast iron
M20048322
EIA.120.00 12 12 11.8 93 36 45 5 0.2 41 HA 36
material steel
material cast iron
M20048323
EIA.120.10 12 12 11.8 93 36 45 5 0.2 41 HB 36
material steel
material cast iron
M20048324
EIA.160.00 16 16 15.8 108 48 55 5 0.3 54 HA 48
material steel
material cast iron
M20048325
EIA.160.10 16 16 15.8 108 48 55 5 0.3 54 HB 48
material steel
material cast iron
M20048326
EIA.200.00 20 20 19.8 126 60 70 5 0.4 65 HA 60
material steel
material cast iron
M20048327
EIA.200.10 20 20 19.8 126 60 70 5 0.4 65 HB 60
material steel
material cast iron
M20048328
