MAS solid carbide end mill
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for soft materials - Typ W
- Flutes 6-14
- Front form chamfer
- Helix angle 15°
- Shank design HA
- Works standard
- Coating diamond
- High Speed Cutting HSC
- For fibreglass/carbonfibre plastics/graphite
- Compressed-air processing
- High Performance
- 1st Choice
- Machining direction xyz
- Side milling
- Flutes 6-14
- Front form chamfer
- Helix angle 15°
- Shank design HA
- Works standard
- Coating diamond
- High Speed Cutting HSC
- For fibreglass/carbonfibre plastics/graphite
- Compressed-air processing
- High Performance
- 1st Choice
- Machining direction xyz
- Side milling
Variants

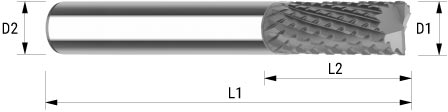

| product name | D1 | D2 | L1 | L2 | Z | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|
| EF.04001275 | 4 | 6 | 60 | 16 | 6 | HA | 16 |
|
M20062209 | |
| EF.06001275 | 6 | 6 | 60 | 20 | 8 | HA | 20 |
|
M20062210 | |
| EF.06101275 | 6 | 6 | 75 | 35 | 8 | HA | 35 |
|
M20062211 | |
| EF.08001275 | 8 | 8 | 75 | 32 | 10 | HA | 32 |
|
M20062212 | |
| EF.08101275 | 8 | 8 | 100 | 40 | 10 | HA | 40 |
|
M20062213 | |
| EF.10001275 | 10 | 10 | 72 | 32 | 12 | HA | 32 |
|
M20062214 | |
| EF.10101275 | 10 | 10 | 100 | 50 | 12 | HA | 50 |
|
M20062215 | |
| EF.12001275 | 12 | 12 | 83 | 32 | 14 | HA | 32 |
|
M20062216 | |
| EF.12101275 | 12 | 12 | 120 | 60 | 14 | HA | 60 |
|
M20062217 |
