MAS solid carbide end mill HPC
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for normal materials - Typ N
- flutes 3
- Front form chamfer
- Helix angle 38°/40°/42°
- Shank design HA
- Shank design HB
- Works standard
- Length of design - long
- Coating TIALN
- High Performance Cutting HPC
- For rost and acid constant steel
- General Purpose
- Machining direction xyz
- Side milling
- Slot milling
- Finishing
- flutes 3
- Front form chamfer
- Helix angle 38°/40°/42°
- Shank design HA
- Shank design HB
- Works standard
- Length of design - long
- Coating TIALN
- High Performance Cutting HPC
- For rost and acid constant steel
- General Purpose
- Machining direction xyz
- Side milling
- Slot milling
- Finishing
Variants

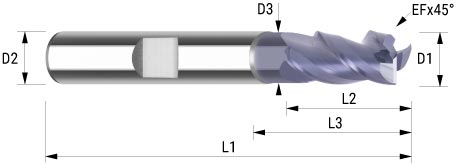

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | Corner chamfer | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A.IB9.101.10 | 10 | 10 | 9.5 | 72 | 22 | 32 | 3 | 0.2 | HB | 22 |
|
M10047169 | |
| A.IB9.031.00 | 3 | 6 | 2.8 | 57 | 8 | 11 | 3 | 0.1 | HA | 8 |
|
M20061831 | |
| A.IB9.031.10 | 3 | 6 | 2.8 | 57 | 8 | 11 | 3 | 0.1 | HB | 8 |
|
M20061832 | |
| A.IB9.041.00 | 4 | 6 | 3.7 | 57 | 11 | 16 | 3 | 0.1 | HA | 11 |
|
M20061833 | |
| A.IB9.041.10 | 4 | 6 | 3.7 | 57 | 11 | 16 | 3 | 0.1 | HB | 11 |
|
M20061834 | |
| A.IB9.051.00 | 5 | 6 | 4.7 | 57 | 13 | 18 | 3 | 0.15 | HA | 13 |
|
M20061835 | |
| A.IB9.051.10 | 5 | 6 | 4.7 | 57 | 13 | 18 | 3 | 0.15 | HB | 13 |
|
M20061836 | |
| A.IB9.061.00 | 6 | 6 | 5.6 | 57 | 13 | 18 | 3 | 0.2 | HA | 13 |
|
M20061837 | |
| A.IB9.061.10 | 6 | 6 | 5.6 | 57 | 13 | 18 | 3 | 0.2 | HB | 13 |
|
M20061838 | |
| A.IB9.081.00 | 8 | 8 | 7.5 | 63 | 19 | 26 | 3 | 0.2 | HA | 19 |
|
M20061839 | |
| A.IB9.081.10 | 8 | 8 | 7.5 | 63 | 19 | 26 | 3 | 0.2 | HB | 19 |
|
M20061840 | |
| A.IB9.101.00 | 10 | 10 | 9.5 | 72 | 22 | 32 | 3 | 0.2 | HA | 22 |
|
M20061841 | |
| A.IB9.121.00 | 12 | 12 | 11 | 83 | 26 | 36 | 3 | 0.3 | HA | 26 |
|
M20061842 | |
| A.IB9.121.10 | 12 | 12 | 11 | 83 | 26 | 36 | 3 | 0.3 | HB | 26 |
|
M20061843 | |
| A.IB9.161.00 | 16 | 16 | 15 | 92 | 32 | 42 | 3 | 0.3 | HA | 32 |
|
M20061844 | |
| A.IB9.161.10 | 16 | 16 | 15 | 92 | 32 | 42 | 3 | 0.3 | HB | 32 |
|
M20061845 | |
| A.IB9.201.00 | 20 | 20 | 19 | 104 | 38 | 48 | 3 | 0.4 | HA | 38 |
|
M20061846 | |
| A.IB9.201.10 | 20 | 20 | 19 | 104 | 38 | 48 | 3 | 0.4 | HB | 38 |
|
M20061847 |
