boring tool (IN©turn) boring bar, for soft machining
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
The IN©turn mini boring bars are the ideal solution for precise hard and soft machining, offering maximum efficiency and flexibility in your production process!
- Interior turning for diameters over 1.00 mm
- High changing accuracy and rigidity
- Variable use with holder system from Ø 2.00 mm to Ø 6.00 mm
- Wear-resistant CBN and carbide metal grades also for stainless steel
- Smallest possible diameter: tailored to the component: even Ø 0.50 mm can be implemented
- Vibration-dampening holders with hydraulic expansion direct clamping
- Perfect price-performance ratio
- Interior turning for diameters over 1.00 mm
- High changing accuracy and rigidity
- Variable use with holder system from Ø 2.00 mm to Ø 6.00 mm
- Wear-resistant CBN and carbide metal grades also for stainless steel
- Smallest possible diameter: tailored to the component: even Ø 0.50 mm can be implemented
- Vibration-dampening holders with hydraulic expansion direct clamping
- Perfect price-performance ratio
Variants

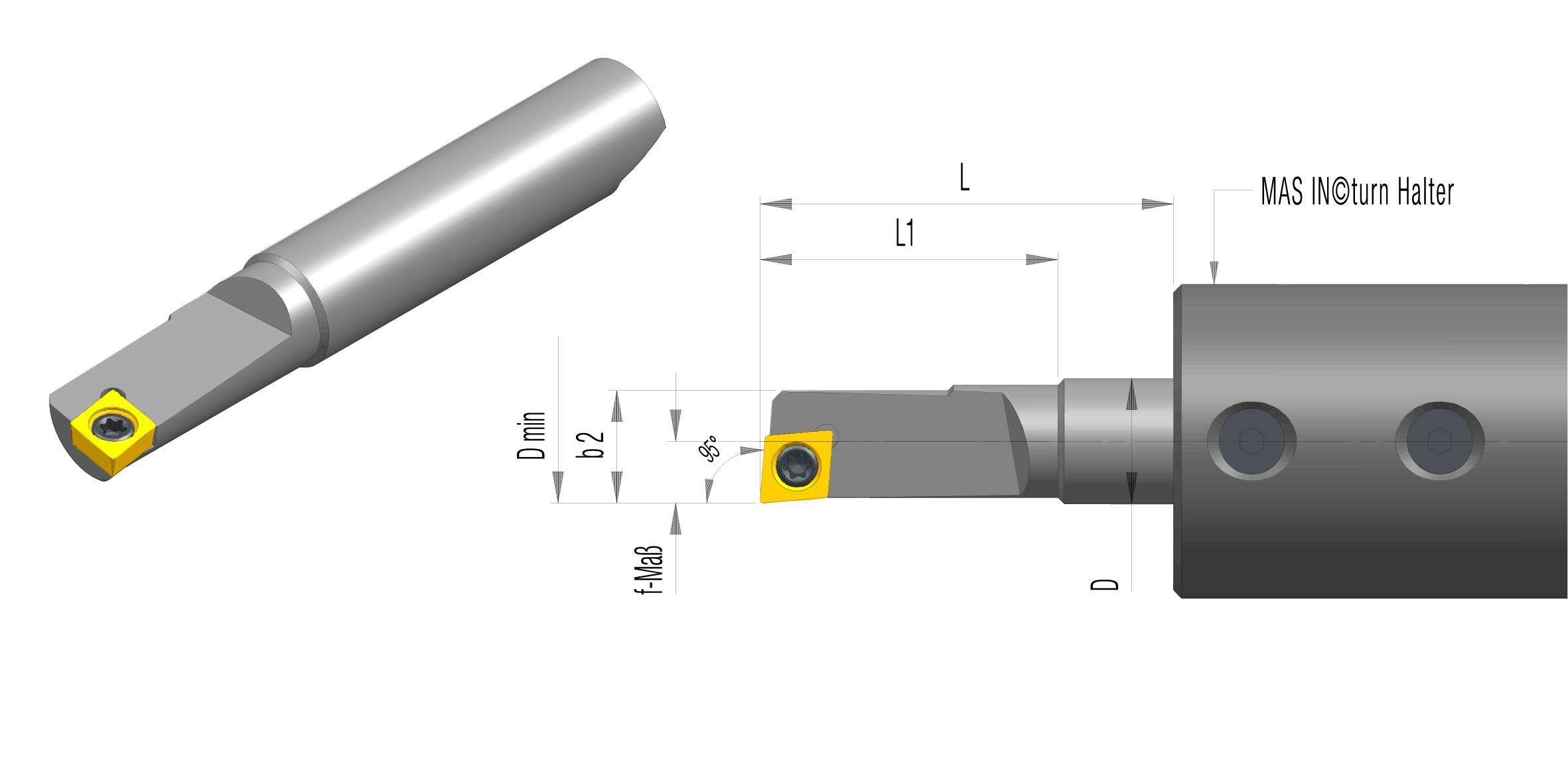

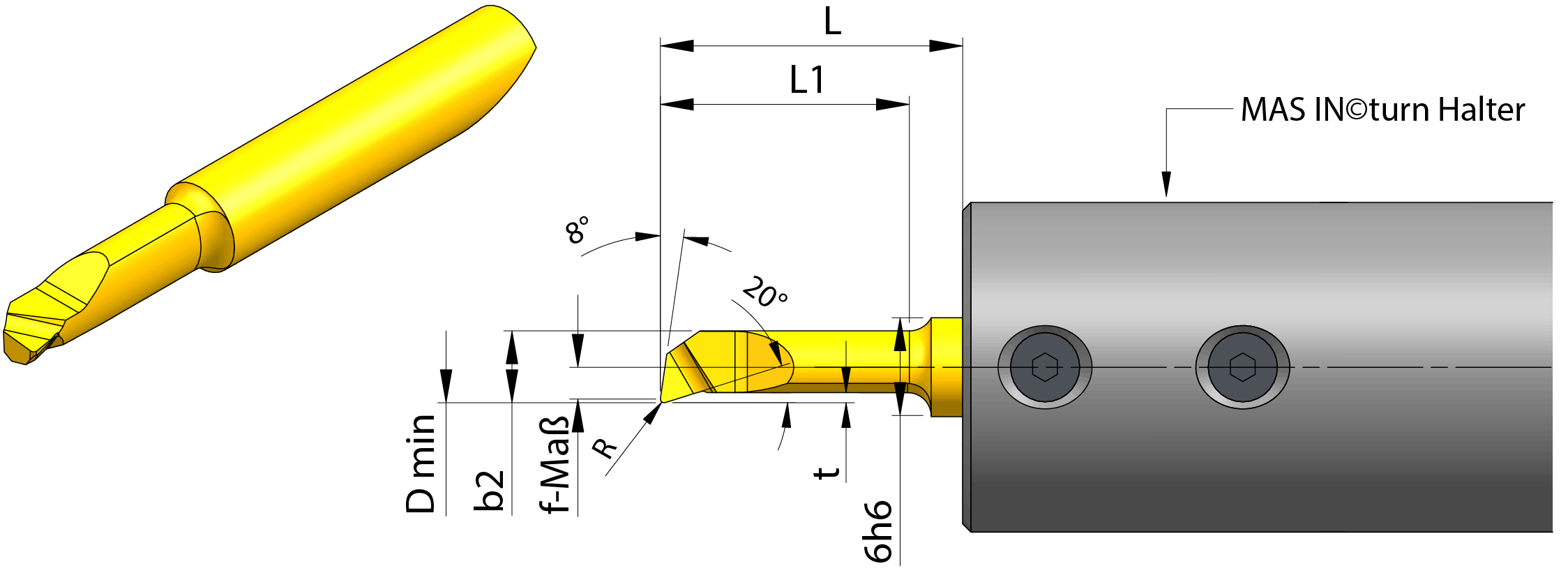

| product name | Dmin (Drilling-Ø min.) | L1 (useful tool length) | Interface | Cutting material | f-dimension (functional width) | b2 (cutting edge total width) | L1 (usable tool length) | Tool main cutting edge angle | WP screw | Tightening torque (Nm) | Suitability of material | t (plunge depth max.) | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IN6.060.182-SCLCR04 | 6 | 18.2 | IN6 | HM | 3 | 5.5 | 20 | 80° | WPS016030-06TX | 0.2 |
|
E00015925 | ||
| IN8.070.107-SCLCR04 | 7 | 10.7 | IN8 | HM | 3.5 | 6.4 | 12 | 80° | BFTX016033 | 0.2 |
|
E00015926 |
|
|
| IN8.070.212-SCLCR04 | 7 | 21.2 | IN8 | HM | 3.5 | 6.4 | 23 | 80° | BFTX016033 | 0.2 |
|
E00015927 |
|
|
| IN8.080.122-SCLCR04 | 8 | 12.2 | IN8 | HM | 4 | 7.2 | 14 | 80° | BFTX016033 | 0.2 |
|
E00015928 |
|
|
| IN8.080.242-SCLCR04 | 8 | 24.2 | IN8 | HM | 4 | 7.2 | 26 | 80° | BFTX016033 | 0.2 |
|
E00015929 |
|
|
| IN6.060.302-SCLCR04 | 6 | 30.2 | IN6 | HM | 3 | 5.5 | 32 | 80° | WPS016030-06TX | 0.2 |
|
E00016419 |
|
|
| IN8.070.402-SCLCR04 | 7 | 40.2 | IN8 | HM | 3.5 | 6.4 | 42 | 80° | BFTX016033 | 0.2 |
|
E00016421 |
|
|
| IN8.070.352-SCLCL04 | 7 | 35.2 | IN8 | HM | 3.5 | 6.4 | 37 | 80° | BFTX016033 | 0.2 |
|
E00017829 |
|
|
| IN6.060.092-SCLCR04 | 6 | 9.2 | IN6 | HM | 3 | 5.5 | 11 | 80° | WPS016030-06TX | 0.2 |
|
E00015924 |
|
|
| IN6.010.030.003HM120C | 1 | 3 | IN6 | HM | 0.5 | 0.95 | 7 | 62° |
|
0.1 | M10004767 |
|
||
| IN6.010.030.010HM120C | 1 | 3 | IN6 | HM | 0.5 | 0.95 | 7 | 62° |
|
0.1 | M10004768 |
|
||
| IN6.010.050.003HM120C | 1 | 5 | IN6 | HM | 0.5 | 0.95 | 7 | 62° |
|
0.1 | M10004772 |
|
||
| IN6.010.050.010HM120C | 1 | 5 | IN6 | HM | 0.5 | 0.95 | 7 | 62° |
|
0.1 | M10004773 |
|
||
| IN6.015.045.003HM120C | 1.5 | 4.5 | IN6 | HM | 0.75 | 1.35 | 6.5 | 62° |
|
0.15 | M10005494 |
|
||
| IN6.015.045.010HM120C | 1.5 | 4.5 | IN6 | HM | 0.75 | 1.35 | 6.5 | 62° |
|
0.15 | M10005495 |
|
||
| IN6.015.075.003HM120C | 1.5 | 7.5 | IN6 | HM | 0.75 | 1.35 | 9.5 | 62° |
|
0.15 | M10005496 |
|
||
| IN6.015.075.010HM120C | 1.5 | 7.5 | IN6 | HM | 0.75 | 1.35 | 9.5 | 62° |
|
0.15 | M10005497 |
|
||
| IN6.020.060.010HM120C | 2 | 6 | IN6 | HM | 1 | 1.75 | 8 | 62° |
|
0.2 | M10005789 |
|
||
| IN6.020.100.003HM120C | 2 | 10 | IN6 | HM | 1 | 1.75 | 12 | 62° |
|
0.2 | M10005796 |
|
||
| IN6.020.100.010HM120C | 2 | 10 | IN6 | HM | 1 | 1.75 | 12 | 62° |
|
0.2 | M10005797 |
|
||
| IN6.025.075.010HM120C | 2.5 | 7.5 | IN6 | HM | 1.25 | 2.25 | 9.5 | 62° |
|
0.2 | M10006072 |
|
||
| IN6.025.125.010HM120C | 2.5 | 12.5 | IN6 | HM | 1.25 | 2.25 | 14.5 | 62° |
|
0.2 | M10006079 |
|
||
| IN6.025.175.010HM120C | 2.5 | 17.5 | IN6 | HM | 1.25 | 2.25 | 19.5 | 62° |
|
0.2 | M10006080 |
|
||
| IN6.035.175.015HM120C | 3.5 | 17.5 | IN6 | HM | 1.75 | 3.25 | 19.5 | 62° |
|
0.2 | M10006220 |
|
||
| IN6.035.245.015HM120C | 3.5 | 24.5 | IN6 | HM | 1.75 | 3.25 | 26.5 | 62° |
|
0.2 | M10006221 |
|
||
| IN6.030.090.015HM120C | 3 | 9 | IN6 | HM | 1.5 | 2.75 | 11 | 62° |
|
0.2 | M10006848 |
|
||
| IN6.030.150.015HM120C | 3 | 15 | IN6 | HM | 1.5 | 2.75 | 17 | 62° |
|
0.2 | M10006860 |
|
||
| IN6.030.210.015HM120C | 3 | 21 | IN6 | HM | 1.5 | 2.75 | 23 | 62° |
|
0.2 | M10006861 |
|
||
| IN6.035.105.015HM120C | 3.5 | 10.5 | IN6 | HM | 1.75 | 3.25 | 12.5 | 62° |
|
0.2 | M10007095 |
|
||
| IN6.040.120.015HM120C | 4 | 12 | IN6 | HM | 2 | 3.75 | 14 | 62° |
|
0.3 | M10007181 |
|
||
| IN6.040.200.015HM120C | 4 | 20 | IN6 | HM | 2 | 3.75 | 22 | 62° |
|
0.3 | M10007186 |
|
||
| IN6.040.280.015HM120C | 4 | 28 | IN6 | HM | 2 | 3.75 | 30 | 62° |
|
0.3 | M10007187 |
|
||
| IN6.055.165.020HM120C | 5.5 | 16.5 | IN6 | HM | 2.75 | 5.25 | 18.5 | 62° |
|
0.5 | M10007195 |
|
||
| IN6.055.275.020HM120C | 5.5 | 27.5 | IN6 | HM | 2.75 | 5.25 | 29.5 | 62° |
|
0.5 | M10007199 |
|
||
| IN6.055.385.020HM120C | 5.5 | 38.5 | IN6 | HM | 2.75 | 5.25 | 40.5 | 62° |
|
0.5 | M10007200 |
|
||
| IN6.045.135.015HM120C | 4.5 | 13.5 | IN6 | HM | 2.25 | 4.25 | 15.5 | 62° |
|
0.3 | M10007268 |
|
||
| IN6.045.225.015HM120C | 4.5 | 22.5 | IN6 | HM | 2.25 | 4.25 | 24.5 | 62° |
|
0.3 | M10007274 |
|
||
| IN6.045.315.015HM120C | 4.5 | 31.5 | IN6 | HM | 2.25 | 4.25 | 33.5 | 62° |
|
0.3 | M10007275 |
|
||
| IN6.050.150.020HM120C | 5 | 15 | IN6 | HM | 2.5 | 4.75 | 17 | 62° |
|
0.5 | M10007449 |
|
||
| IN6.050.250.020HM120C | 5 | 25 | IN6 | HM | 2.5 | 4.75 | 27 | 62° |
|
0.5 | M10007453 |
|
||
| IN6.050.350.020HM120C | 5 | 35 | IN6 | HM | 2.5 | 4.75 | 37 | 62° |
|
0.5 | M10007454 |
|
