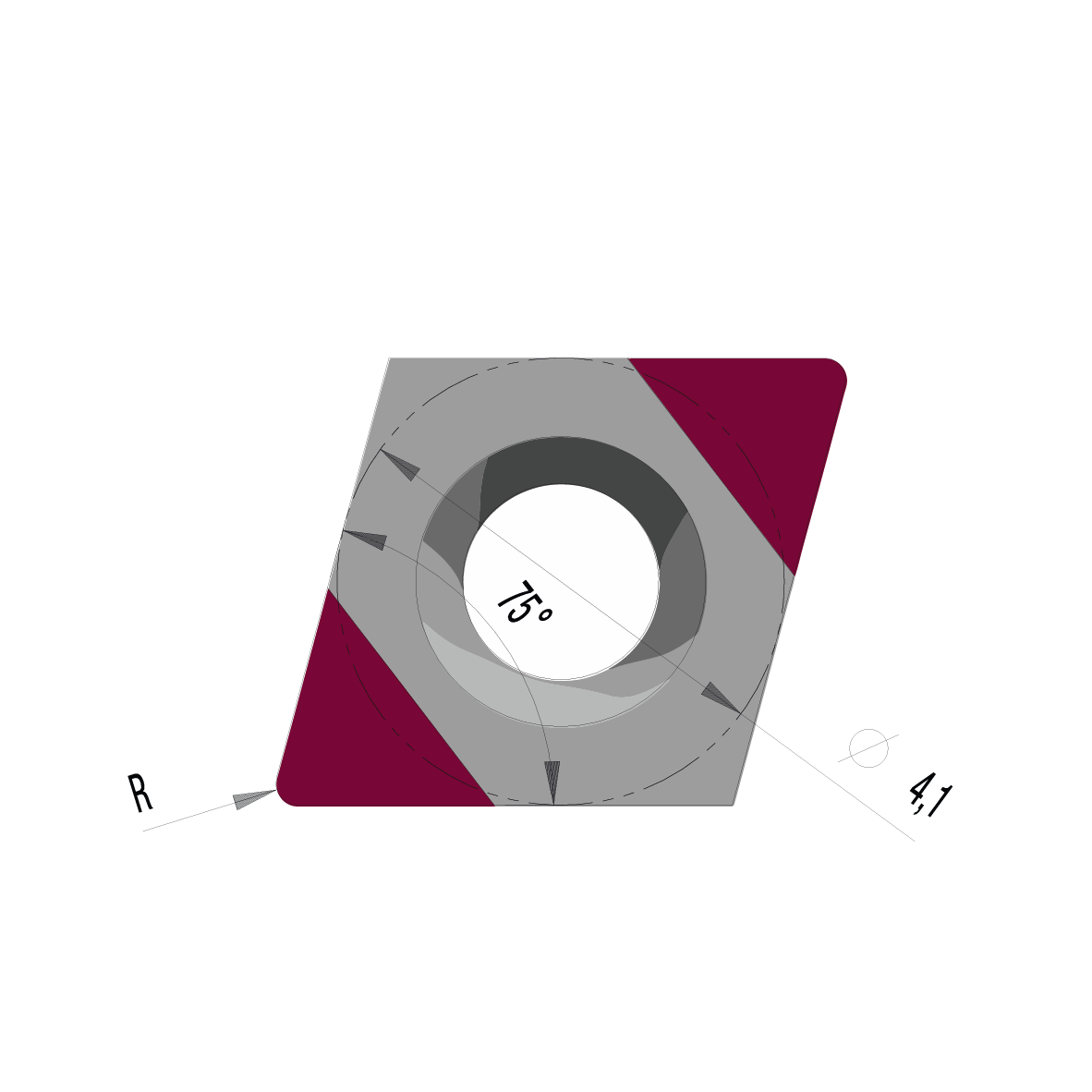

Indexable insert for boring tool (IN©turn) boring bar, hard machining
Loading...
Loading...
Request product
Product information
The inserts for the IN©turn mini boring bars can be manufactured individually according to your specific requirements to ensure maximum efficiency and precision in machining.
- Interior turning for diameters over 1.00 mm
- High changing accuracy and rigidity
- Variable use with holder system from Ø 2.00 mm to Ø 6.00 mm
- Wear-resistant CBN and carbide metal grades also for stainless steel
- Smallest possible diameter: tailored to the component: even Ø 0.50 mm can be implemented
- Vibration-dampening holders with hydraulic expansion direct clamping
- Perfect price-performance ratio
- Interior turning for diameters over 1.00 mm
- High changing accuracy and rigidity
- Variable use with holder system from Ø 2.00 mm to Ø 6.00 mm
- Wear-resistant CBN and carbide metal grades also for stainless steel
- Smallest possible diameter: tailored to the component: even Ø 0.50 mm can be implemented
- Vibration-dampening holders with hydraulic expansion direct clamping
- Perfect price-performance ratio
Variants
| product name | Corner radius | Cutting material | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|
| EBGW040101CBN120 | 0.1 | CBN |
|
E00014263 | |
| EBGW040102CBN120 | 0.2 | CBN |
|
E00014264 | |
| EBGW040104CBN120 | 0.4 | CBN |
|
E00014265 |
