MAS innovations

Thanks to our tool innovations that are perfectly tailored to your needs, you set new benchmarks with regard to efficiency, flexibility, and precision.

PSI©turn - Cleverly Cooled

Process-safe internal cooling. Exactly with this clever way of internal cooling you can now maximize your output and minimize your costs per part thanks to our tool innovation PSI©turn.

  • - optimum chip control
  • - improvement of tool life
  • - reliable internal cooling
  • - innovative new design
  • - increased productivity

Discover more in our PDF

PZ©turn - Modular Quick-Change System

  • - Quick-change system with only one clamping screw
  • - Square shank metric: 12 mm / 16 mm – inch: 1/2" (12,7 mm) / 5/8" (15,88)
  • - Cutting head suitable for metric and inch shank
  • - Highest repeatability
  • - Multipurpose for all machines
  • - Internal coolant supply
  • - Optimum accessibility when changing inserts

Discover more in our PDF

GANG©plate
Plug & Play

  • - Highly flexible inner cooling (high / low)
  • - Simple set up, fast and precise changes
  • - Save
  • - Less chips
  • - Also for third partie products

Discover more in our GANG©plate-PDF!

MH©cut - Honing Module

  • - Honing module for lathes for the high-precision machining of the smallest inner diameters
  • - Highest process reliability of diameter, surface, and dimensional accuracy

Discover more in our PDF

MODUL©turn - it doesn't get more efficient than this!

Modular boring bar system with flexibly combinable shanks and cutter heads for high flexibility and minimum costs.

  • - Suitable for machining of soft and hard materials
  • - Joints with various diameters ø 20 / 25 / 32 / 40 / 60 mm
  • - Standard version with internal cooling
  • - Special cutter head and special shank lengths available

Discover more in our PDF

SPEEDY©turn - it doesn’t get more productive than this!

Adjustable double cutter head for fast and precise wheel machining when cutting hard materials.

  • - Up to and over 1 mm / rotation
  • - Adjustable via X-axis
  • - High process reliability
  • - Improved drilling quality

Discover more in our PDF

MEX©turn - it doesn't get more precise than this!

Pre-settable clamping system with high repeatability for more process reliability, longer service life, and improved surfaces.

  • - Precise and fast center height adjustment
  • - Tooling and pre-setting outside the machine
  • - Hydraulic chuck clamping sleeves for optimum vibration damping
  • - Clamping of high-frequency spindles possible with ø 25.4 mm and ø 33 mm

PDF MEX©turn Complete Catalog
PDF MEX©turn for Wasino

IN©turn - it doesn't get smaller than this!

Interior turning system with high change accuracy and rigidity for the smallest possible diameters, hard and soft internal machining.

  • - Interior turning for diameters above 2.00 mm
  • - Smallest possible diameter: Tailored to the component; even ø 0.50 mm can be implemented
  • - Variable use with holder system
    from ø 2.00 – ø 8 mm
  • - Wear-resistant CBN and carbide types, also for non-rusting metals

Discover more in our PDF

POLY©turn - it doesn't get more flexible than this!

Modular polygon turning system for ultra-precise recess and cylindrical turning, reducing cycle times while improving surface qualities.

  • - For steel, stainless steels, and non-ferrous metals
  • - Vibration damping
  • - Quicker feeds
  • - Cassettes can be adjusted universally

Discover more in our PDF

Rotational Turning WHEELS - it doesn’t get faster than this!

Rotational turning tool for wheels on Weisser Univertor AS for twist-free machining of bores, tapers, and faces with CBN.

  • - Exchangeable cutting edges for diameters above 22 mm
  • - Cuts machining time
    by factor ∼ 3.5
  • - Increases cutting speed
    by approx. 50%
  • - Can be reground multiple times

Discover more in our PDF

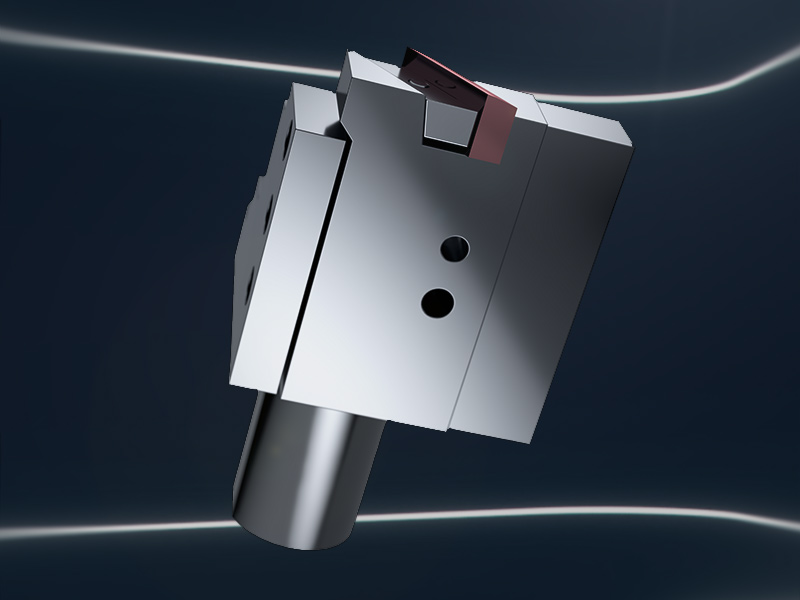

Rotational Turning SHAFTS - it doesn’t get faster than this!

Rotary tool for shafts on Weisser Univertor AS for twist-free machining of bores, tapers, and faces with CBN.

  • - Circularity tolerance < 0.003 mm
  • - Straightness tolerance < 0.003 mm
  • - Concentricity < 0.004 mm
  • - Parallelism < 0.004 mm

Discover more in our PDF

MAS special tools

We develop application-based, fast, and cost-efficient tailored special tools according to your individual requirements.

You know what you want.
We know what you need.

We look forward to hearing from you!
